SR800
AI Inference NVIDIA® GPU workstation with NVIDIA QUADRO P3000, Intel® Xeon® D-1577 Processor (16 Cores), 128GB DDR4 ECC RDIMM, MIL-STD 461
Ultra-High Intel® Xeon® D Processor (16 Cores, 32 Threads, 24MB Cache)
Broadwell DE
Intel® Xeon® processor D-1500 product family offers hardware and software scalability from two up to sixteen cores, making it the perfect choice for a broad range of high-performing, low-power solutions that will bring intelligence and Intel® Xeon® reliability, availability, and serviceability (RAS) to the edge.
Enhanced performance per watt
Intel® Xeon® processor D-1500 product family delivers exceptional value and unmatched performance density per watt. Its TDP of 19W to 65W, industry-leading 14 nm process technology and a compute-only design make it ideal for meeting the diverse needs of customers seeking mid-range low-power, high-density solutions.
Enabling more IoT Use Cases
The Intel® Xeon® processor D-1500 product Family drives a host of new IoT opportunities for a wide range of environments, while addressing real-time optimization, and workload consolidation. Its temperature rating spans from -40°C to 85°C operating ambient conditions, which establishes new possibilities for Intel® architecture in markets that require robust products, like aerospace and industrial.
MIL-STD-1275/704 Power Supply with Voltage Transient Protections
SR800 is designed with MIL-STD-1275/704, protecting against vehicle/aircrafts voltage surges, spikes and transients, and even electromagnetic interference. This characteristic is well suited for the strictest military requirement and deliver optimal performance in harsh conditions.
The GAIA Hi-Rel DC/DC CONVERTER it also provides under voltage Lockout (UVLO), Output over Current Protection (OCP), Output Overvoltage Protection (OVP) and Over Temperature Protection (OTP) to made stability and safety.
Swappable CMOS Battery
Generally, to exchange the battery from a rugged solution is complicated and has the possibility to affect the original function of water and dust resistance. SR800 has an easy swappable battery tray allowing users to directly replace. A coin-cell battery can be seen when pulling the tray fully out of the computer; users just need to change with CR2032 battery and push the tray back and lock screw, then the replacement is completed.
Dual Removable SSD
The dual Removable SSD (Solid-state Disk) provide a compact self-contained system to store and retrieve data from ruggedized and removable 2.5” Flash Disks and have been qualified to meet the most demanding MIL-STD-810 environments. The dual Removable SSD Disk System is the perfect DTU for military, aerospace, avionics and ground vehicle systems. These systems include flight management, cockpit instrument display, terrain awareness and warning, map systems, radar systems, cockpit/ground communications, navigation positioning, and satellite communications.
Hardware Secure Erase
Under emergency situation, when written data is required to be erased immediately, a Secure Erase Button is extremely indispensable. Instant Erase is a particular feature for SED ( Self Encryption Drive ) drive. It's faster than Quick Erase to make all written data invalid. The encryption and decryption is controlled by an AES key on the path; once the AES key is replaced by a new one, the data becomes unrecognizable.

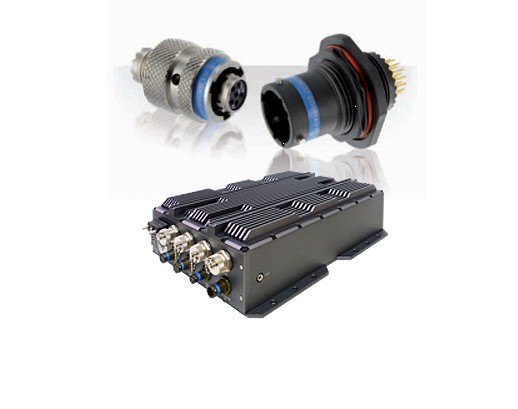

D38999 connectors offer the highest performance capabilities and reliability for both general duty and severe environment applications. This cylindrical connector family designed for cable-to-panel I/O applications in military, aerospace and other demanding hazardous situations. D38999 connectors are capable of operation within a temperature range -65 to 200°C. They are lightweight and can stand up to environmental challenges. Made with removable crimp or fixed hermetic solder contacts, these connectors provide high-vibration characteristics and are suitable for severe wind and moisture problem areas.
Technical Specifications
| Product | SR800 |
|---|---|
| CPU | Intel® Xeon® Processor D-1587 |
| Memory | 4x DIMMs Up to 128GB ECC RDIMM DDR4 2133MHz |
| Graphics Card | ASPEED AST2400 |
| Storage | Dual Removable 2.5" SATA Tray |
| Dimensions | Width: 260mm, Depth: 350mm, Height: 102mm |
| Weight | 9.6 kg (21.16 lbs) |
| Temperature | (Operating) 0°C to 50°C, (Storage) -40°C to 85°C |
Configuration Options
The technical specifications are an example of the system's capabilities. They can be customized specifically for your needs. If you have any questions, feel free to contact one of our sales representatives.
Contact Sales| Product |
SR800
|
|---|---|
| CPU | Intel® Xeon® Processor D-1587 |
| Memory | 4x DIMMs Up to 128GB ECC RDIMM DDR4 2133MHz |
| Graphics Card | ASPEED AST2400 |
| Storage | Dual Removable 2.5" SATA Tray |
| Dimensions | Width: 260mm, Depth: 350mm, Height: 102mm |
| Weight | 9.6 kg (21.16 lbs) |
| Temperature | (Operating) 0°C to 50°C, (Storage) -40°C to 85°C |
Request A Quote
Cage Code: 4AA27
