FlexPAC Family

Standard industrial workstations.

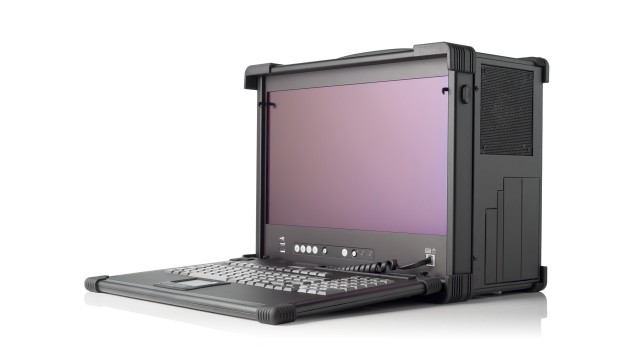

FlexPAC 385 Main

Compact, High Performance, Rugged Portable with a 17.3" or 18.5" display and 7 full-length expansion slots. Configurable with the latest Intel® Core™ or AMD processor.

FlexPAC L1

Learn more

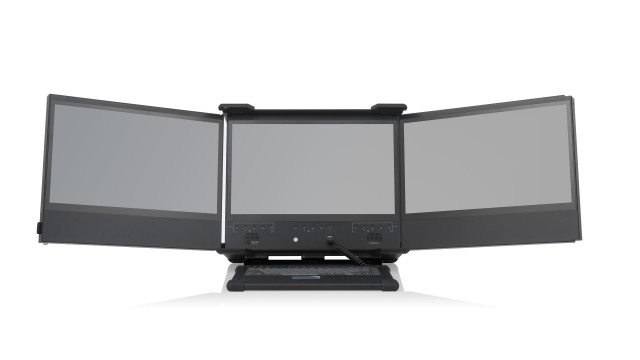

FlexPAC 385 L3 Main

Triple 17.3" or 18.5" HD displays in a high performance, rugged portable setup. Designed as a flexible-use unit with 7x full-length expansion slots configurable for the most demanding applications.

FlexPAC L3

Learn more

FlexPAC Family Technical Specs

FlexPAC L1 Thumbnail

FlexPAC L1

Learn more

FlexPAC L3 Thumbnail

FlexPAC L3

Learn more

17.3" or 18.5" FHD 1920x1080 - 300 nits

Upgradable options:
1000 nits,
UHD 3840x2160, 60Hz Display,
2K, 144Hz displays,
projected capacitive or resistive touchscreen option

Triple 17.3" or 18.5" Full HD 1920x1080

Latest Single/Dual Intel® Xeon, Intel® Core, AMD Ryzen™, or AMD EPYC™

Latest Single/Dual Intel® Xeon, Intel® Core, AMD Ryzen™, or AMD EPYC™

Up to 1TB DDR4 RAM

Up to 1TB DDR4 RAM

Integrated HD graphic controller
or application-specific graphic controller

Integrated HD graphic controller
or application specific graphic controller

Up to 7

Up to 7

Up to 48TB (Removable Option Available)

Up to 36TB (Removable Option Available)

680W 100/240VAC, 50/60Hz Auto-Switching 80 Plus Gold Rated Power Supply

Upgradable to 850W+

850W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated power supply

Height: 17.06" (433mm)
Width: 13.67" (347mm)
Depth: 9.02" (229mm)

Folded:
Height: 14.5" (368mm)
Width: 17.125" (435mm)
Depth: 11.75" (298.5mm)

Deployed:
Height: 14.5" (368mm)
Width: 43.0" (1092mm)
Depth: 11.75" (298.5mm)

~30 lbs (13.6kg)

~47 lbs (21.3kg)
