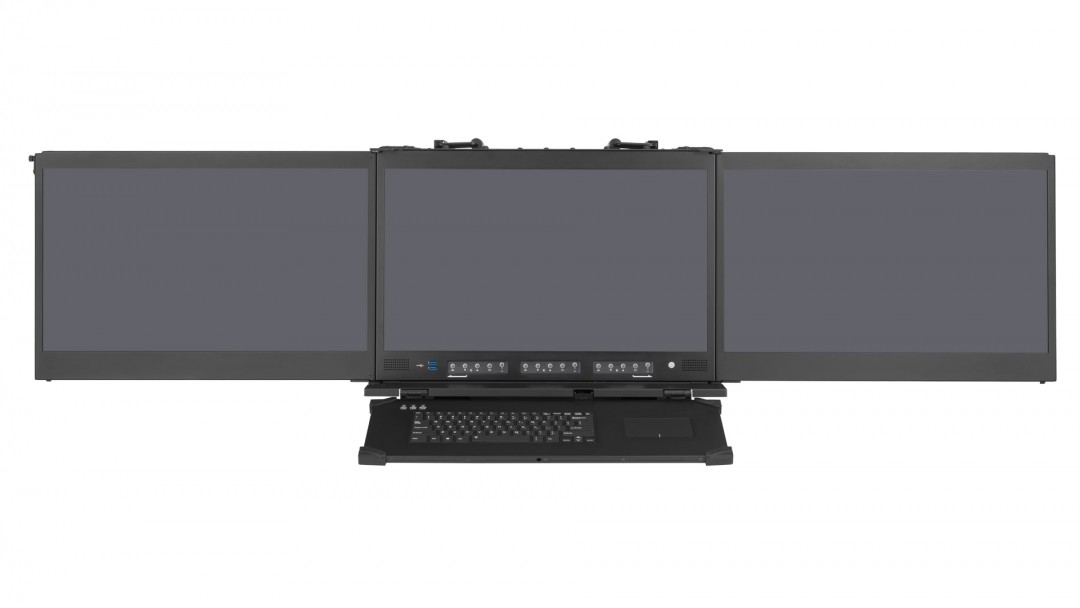

MegaPAC L3


Triple 24" HD displays in a high performance, rugged portable setup. Designed as a flexible-use unit with 7x full-length expansion slots configurable for the most demanding applications.

The ML3, a triple display accessory, can also be attached to the MegaPAC L3 system for a total of 6 displays.

Download Datasheet

Contact us
for more information or advice

schedule a live video call
or
send us an email

Contact us icon
Video Preview

Triple Large Display High Performance Rugged Portable

The FlexPAC III is a classic system at Acme Portable. With its power and displays, it was a popular mobile command control center used in emergency situations, simulations, and more. Nevertheless, there has been an increasing demand for a stronger system. As a result, now equipped with ultra HD resolutions, we have created the MegaPAC L3!

The MegaPAC L3 takes all the popular aspects of the FlexPAC III and makes it even bigger and better.

Technical Specifications

Product MegaPAC L3
Display Triple 23.8" UHD 3840x2160 - 350 nits (Optional: 800 nits - 650 nits with touchscreen),
or Triple 23.8" Full HD 1920x1080 - 250 nits (Optional: 1000 nits - 800 nits with touchscreen),
or Triple 23.8" WUXGA 1920x1200 - 250 nits (Optional: 1000 nits)
CPU Latest Single/Dual Intel® Xeon, Intel® Core, AMD Ryzen™, or AMD EPYC™
Memory Up to 1TB DDR4 RAM
Graphics Card Integrated HD graphic controller
or application-specific graphic controller
Expansion Slots Up to 7
Storage Up to 150TB (Removable Option Available)
Power Supply 850W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated
Optional: 1000W or 1200W 100/240VAC, 50/60Hz auto-switching 80 PLUS Platinum rated (with 10 year warranty)
Optional: 28VDC power supply
Dimensions Height: 16.39" (416mm),
Width: 22.96" (583mm),
Depth: 11.98" (304mm)
Weight 52.82 lbs (24kg)
Touch Option Touchscreen Optional
WiFi / Bluetooth WiFi and Bluetooth Optional
RAID RAID 0/1/5/10
Keyboard & Mouse 105-key Keyboard With Integrated Touchpad. Available in a variety of languages.
Transit Case Includes Padded Rolling Transit Case
Optional :Hardened Case Available
Quality ISO 9001
Customization Military connectors, custom I/O, zone 1/2/3, TEMPEST SDIP-27 level A/B/C, and more.

* Please note that the hardware specifications listed on our website are subject to change without prior notice.

Configuration Options

The technical specifications are an example of the system's capabilities. They can be customized specifically for your needs. If you have any questions, feel free to contact one of our sales representatives.

Contact Sales

Compare Similar Systems

At a glance, it may be difficult to see the differences among some of our products. As a result, simply click the button below to see the differences among other similar systems.

Product MegaPAC L3 MegaPAC L2 FlexPAC L3
Display Triple 23.8" UHD 3840x2160 - 350 nits (Optional: 800 nits - 650 nits with touchscreen),
or Triple 23.8" Full HD 1920x1080 - 250 nits (Optional: 1000 nits - 800 nits with touchscreen),
or Triple 23.8" WUXGA 1920x1200 - 250 nits (Optional: 1000 nits)
Dual 23.8" UHD 3840x2160 - 350 nits (Optional: 800 nits - 650 nits with touchscreen),
or Dual 23.8" Full HD 1920x1080 - 250 nits (Optional: 1000 nits - 800 nits with touchscreen),
or Dual 24" WUXGA 1920x1200 - 250 nits (Optional: 1000 nits)
Triple 17.3" or 18.5" Full HD 1920x1080
CPU Latest Single/Dual Intel® Xeon, Intel® Core, AMD Ryzen™, or AMD EPYC™ Latest Single/Dual Intel® Xeon, Intel® Core, AMD Ryzen™, or AMD EPYC™ Latest Single/Dual Intel® Xeon, Intel® Core, AMD Ryzen™, or AMD EPYC™
Memory Up to 1TB DDR4 RAM Up to 1TB DDR4 RAM Up to 1TB DDR4 RAM
Graphics Card Integrated HD graphic controller
or application-specific graphic controller
Integrated HD graphic controller
or application specific graphic controller
Integrated HD graphic controller
or application specific graphic controller
Expansion Slots Up to 7 Up to 7 Up to 7
Storage Up to 150TB (Removable Option Available) Up to 150TB (Removable Option Available) Up to 36TB (Removable Option Available)
Power Supply 850W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated
Optional: 1000W or 1200W 100/240VAC, 50/60Hz auto-switching 80 PLUS Platinum rated (with 10 year warranty)
Optional: 28VDC power supply
850W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated
Optional: 1000W or 1200W 100/240VAC, 50/60Hz auto-switching 80 PLUS Platinum rated (with 10 year warranty)
Optional: 28VDC power supply
850W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated power supply
Dimensions Height: 16.39" (416mm),
Width: 22.96" (583mm),
Depth: 11.98" (304mm)
Height: 16.31" (414mm)
Width: 24.58" (624mm)
Depth: 10.56" (268mm)
Folded:
Height: 14.5" (368mm)
Width: 17.125" (435mm)
Depth: 11.75" (298.5mm)

Deployed:
Height: 14.5" (368mm)
Width: 43.0" (1092mm)
Depth: 11.75" (298.5mm)
Weight 52.82 lbs (24kg) ~45 lbs (20kg) ~47 lbs (21.3kg)
