RMDDU 23

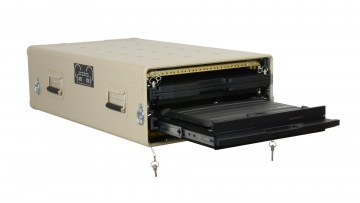

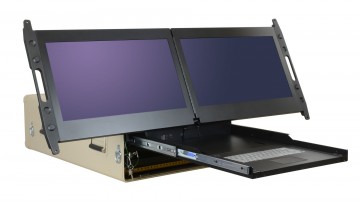

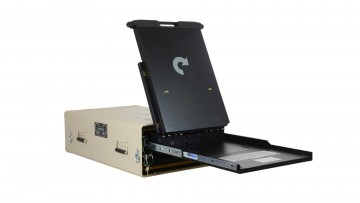

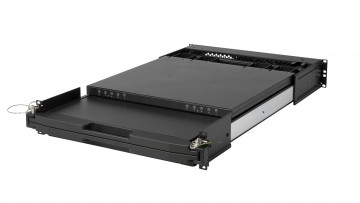

The RMDDU is a rugged 2U rack-mount drawer with dual-screen LCD monitors The displays fold together, rotate, and slide in for storage.
Contact us
for more information or advice
schedule a live video call
or
send us an email
2U Rugged Large Dual Screen Rackmount LCD With 2 Ports
The RMDDU is a rugged 2U rack-mount drawer with dual-screen LCD monitors The displays fold together, rotate, and slide in for storage.

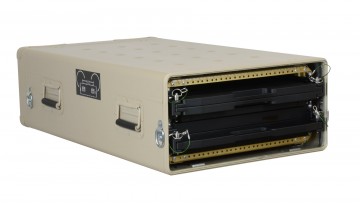

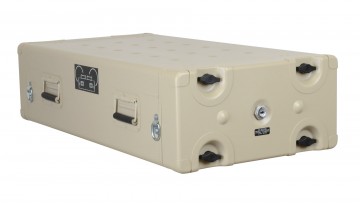

It is an ideal match in military transit case applications and command & control centers. The compact 2U rack-mount display drawer uses a secure all-aluminum monitor mounting and stabilization design necessary for robust government & defense, communications and industrial automation applications.
Technical Specifications
| Product | RMDDU 23 |
|---|---|
| Display | Dual 23" Full HD 1920 x 1080 |
| Viewing Angle | Displays tilt ~10° from vertical |

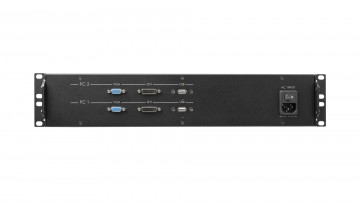

| Ports | 2x DVI, 2x VGA, and 2x USB (1 set per display) |
| Power Supply | 115/230 VAC, 50/60 Hz, 100w Max |
| Keyboard & Mouse | 101 keys backlit keyboard with touchpad and adjustable brightness. Resistive Touchpad Optional: Waterproof keyboard |
| Dimensions | Height: 2U - 3.42" (88mm), Width: 19.60" (498mm), Depth: 32.23" (818.6mm) |
| Weight | ~60 lbs (27kg) |
| Temperature | MIL-STD-810E (501.4, 502.4), Operating: 0 ~ 50°C, Non-Operating: -40 ~ 70°C |
| Humidity | MIL-STD-810E (507.2), Relative Humidity: 5% to 95% operating, non-condensing |
| Altitude | MIL-STD-810E (500.3), Operating: 15,000 ft (4571.8 m), Non-Operating: 40,000 ft (12,192 m) |
| Vibration | MIL-STD-810E (514.4), Operating: 10 to 500 Hz 1.04 g (RMS) |
| Shock | MIL-STD-810E (516.4), Operating: 15 G, 8 ms 1/2 sine, Non-Operating: 40 G, 8 ms 1/2 sine |
| Drop | 4" stand alone, 39" transit drop in transit case |
| Customization | Military connectors, custom I/O, zone 1/2/3, TEMPEST SDIP-27 level A/B/C, and more. |
* Please note that the hardware specifications listed on our website are subject to change without prior notice.
Configuration Options
The technical specifications are an example of the system's capabilities. They can be customized specifically for your needs. If you have any questions, feel free to contact one of our sales representatives.
Contact Sales| Product |
RMDDU 23
|
RMDDU 17
|
RMDDU 19
|
|---|---|---|---|
| Display | Dual 23" Full HD 1920 x 1080 | Dual 17.3" Full HD 1920 x 1080, 16:9 Display | Dual 19" SXGA 1280 x 1024 |
| Viewing Angle | Displays tilt ~10° from vertical | Displays tilt ~15° from vertical | Displays tilt ~15° from vertical |
| Ports | 2x DVI, 2x VGA, and 2x USB (1 set per display) | 2x USB 2.0 inputs on front + 2x USB 2.0 inputs on rear Analog VGA, DVI-D, Display Port |
Internal USB 2.0 hub + 2x USB 2.0 inputs on front + 1x USB 2.0 inputs on rear, Analog VGA, DVI-D, Displayport for each display |
| Dimensions | Height: 2U - 3.42" (88mm), Width: 19.60" (498mm), Depth: 32.23" (818.6mm) |
Height: 2U - 3.46" (88mm) Width: 17.76" (451mm) Depth: 25.89" (657.6mm) Rack Depth: 24" (609.6mm) |
Height: 2U - 3.46" (88mm) Width: 17.76" (451mm) Depth: 25.89" (657.6mm) |
| Weight | ~60 lbs (27kg) | ~42 lbs (19kg) | ~45 lbs (20.5kg) |
