NotePAC Familie

NotePAC III Pro V

NotePAC III Pro V

Learn more

NotePAC II Pro V Main

NotePAC II Pro V

Learn more

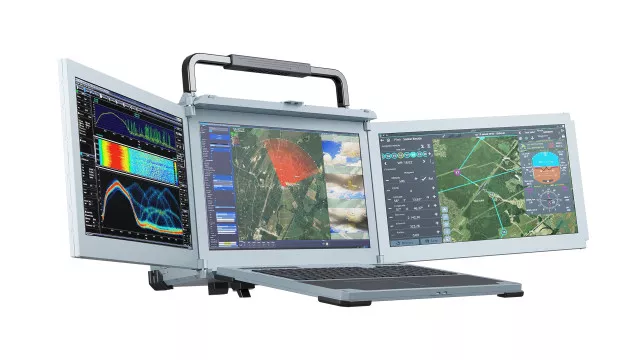

NotePAC III Lite Main

NotePAC III Lite

Learn more

NotePAC Familie Technical Specs

NotePAC III Pro V Thumbnail NotePAC II Pro V Thumbnail NotePAC III Lite Thumbnail

NotePAC III Pro V

NotePAC II Pro V

NotePAC III Lite

Learn more

Learn more

Learn more

display icon

3x 17.3" FHD 1920x1080

display icon for NotePAC II Pro V

2x 17.3" FHD 1920x1080

Upgradable options:
UHD 3840x2160, 60Hz Display,
2K, 144Hz displays

display icon for NotePAC III Lite

3x 17.3" FHD 1920x1080

cpu icon

Intel® Xeon® D-2183IT

cpu icon for NotePAC II Pro V

Intel® Xeon® D-2183IT

cpu icon for NotePAC III Lite

Intel® Core™ i7-13700E Processor

memory icon

32GB DDR4 RAM,
upgradable to 512GB

memory icon for NotePAC II Pro V

16GB DDR4 RAM
Upgradable to 32GB+

memory icon for NotePAC III Lite

Max Memory: 64GB DDR4 SO-DIMM

graphics-card icon

ASPEED AST2500

graphics-card icon for NotePAC II Pro V

NVIDIA Quadro P4000

graphics-card icon for NotePAC III Lite

Intel® UHD (supports up to 4 displays)

os-drive icon

1TB M.2 NVMe,
upgradable to 4 TB NVMe

os-drive icon for NotePAC II Pro V

512GB OS Drive

os-drive icon for NotePAC III Lite

1TB M.2 NVMe,
upgradable to 4 TB NVMe

storage icon

4 standard removable 2.5" slots for up to 8TB each

storage icon for NotePAC II Pro V

1TB Data Drive (Total of 4 removable hard drive cages)

storage icon for NotePAC III Lite

2 standard removable drives

ports icon

Quad LAN with Intel® Ethernet Controller I350-AM4,
Dual LAN with 10G SFP+ LAN via SoC,
Dual LAN with 10Gbase-T,

3x HDMI external clone

ports icon for NotePAC II Pro V

Quad LAN with Intel® Ethernet Controller I350-AM4,
Dual LAN with 10G SFP+ LAN via SoC,
Dual LAN with 10Gbase-T,

CAC reader,

3x HDMI external clone

ports icon for NotePAC III Lite

N/A

battery icon

6x 10.8V, 9200MAH, 99WH

battery icon for NotePAC II Pro V

N/A

battery icon for NotePAC III Lite

2x 14.4V, 6700MAH, 96WH

optional-addons icon

6x 10.8V, 7,500mAh, 81Wh Batteries

optional-addons icon for NotePAC II Pro V

6x 10.8V, 7,500mAh, 81Wh Batteries

optional-addons icon for NotePAC III Lite

N/A

input icon

19VDC/31.6A

input icon for NotePAC II Pro V

19VDC/31.6A

input icon for NotePAC III Lite

N/A

output icon

19VDC

output icon for NotePAC II Pro V

19VDC

output icon for NotePAC III Lite

N/A

charger-specs icon

Charging voltage: 19V ± 1V,
Charging current: 13A ± 0.5A

charger-specs icon for NotePAC II Pro V

Charging voltage: 19V ± 1V,
Charging current: 13A ± 0.5A

charger-specs icon for NotePAC III Lite

N/A

dimensions icon

Chassis dimensions:
Height: 6.0" (153mm)
Width: 17.2" (437mm)
Depth: 13.2" (335mm)


Battery dimensions:
Height: 12.67" (322mm)
Width: 17.04" (433mm)
Depth: 2.71" (69mm)

dimensions icon for NotePAC II Pro V

Chassis dimensions:
Height: 6.0" (153mm)
Width: 17.2" (437mm)
Depth: 13.2" (335mm)


Battery dimensions:
Height: 12.67" (322mm)
Width: 17.04" (433mm)
Depth: 2.71" (69mm)

dimensions icon for NotePAC III Lite

Height: 6.0" (153mm)
Width: 17.2" (437mm)
Depth: 7.5" (191mm)

weight icon

30.9bs (14kg) without batteries
Optional battery pack: Additional 6.6lbs (3kg)

weight icon for NotePAC II Pro V

26.5lbs (12kg)
Optional battery pack: Additional 6.6lbs (3kg)

weight icon for NotePAC III Lite

35.3lbs (16kg) with batteries included
