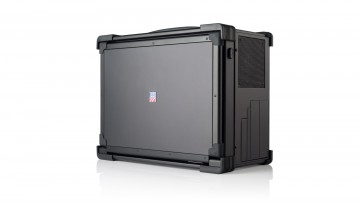

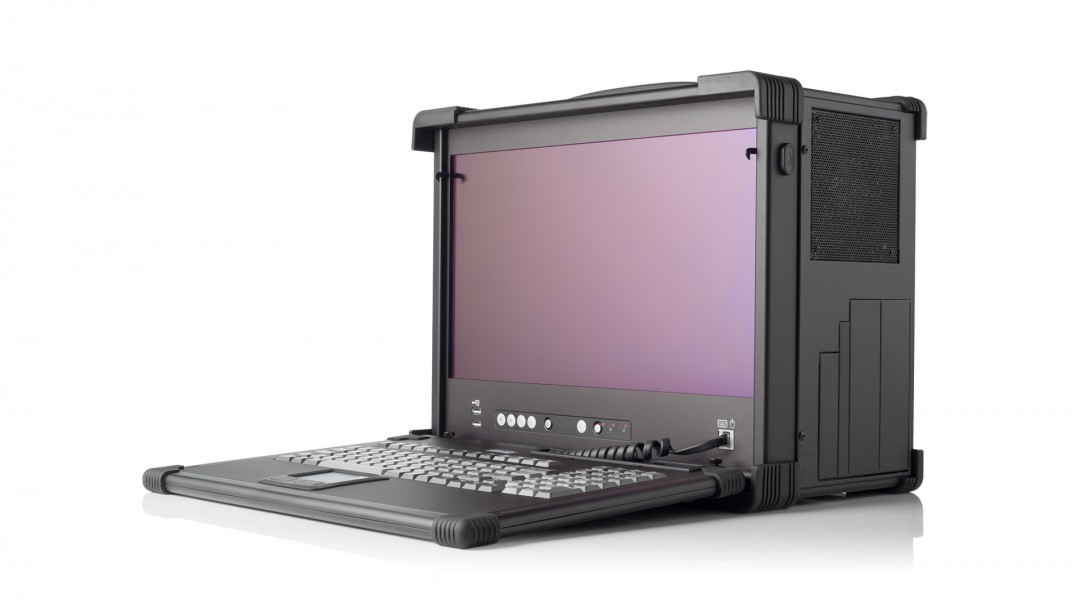

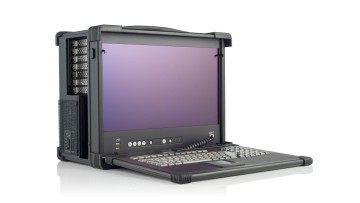

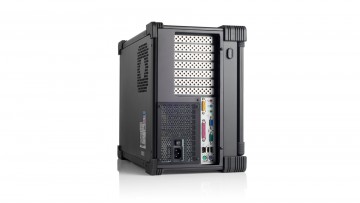

FlexPAC
Compact, High Performance, Rugged Portable with a 17.3" display and 7 full-length expansion slots. Configurable with the latest Intel® Core™ or AMD processor.
High Performance Rugged Portable
The FlexPAC is a robust lunchbox computer built using heavy duty metal to provide tough, go-anywhere unit ideally suitable for harsh/severe environments and mission critical applications. With passive backplane board configurations to choose from the available full length expansion slots of the FlexPAC can be freely configured with other uniquely designed expansions cards for most applications.
Also desiged for harsh environment operations, the LCD screen of the FlexPAC is guarded with a specially treated anti-glare tempered glass for added protection. Every FlexPAC comes equipped with dual system cooling side fans and easy access to its expansion ports for immediate system upgrade or maintenance. Functional practicality combined with the simple and polished design, the FlexPAC with its extra-rugged construction to sustain bumps and impacted blows is the most cost-effective, durable and efficient portable solution for your mission critical applications.
Technical Specifications
| Product | FlexPAC |
|---|---|
| Display | 17.3" FHD 1920x1080 - 300 nits Upgradable options: 1000 nits, UHD 3840x2160, 60Hz Display, 2K, 144Hz displays, projected capacitive or resistive touchscreen option |
| CPU | Latest Single/Dual Intel® Xeon, Intel® Core, AMD Ryzen™, or AMD EPYC™ |
| Memory | Up to 1TB DDR4 RAM |
| Graphics Card | Integrated HD graphic controller or application-specific graphic controller |
| Expansion Slots | Up to 7 |
| Storage | Up to 48TB (Removable Option Available) |
| Power Supply | 680W 100/240VAC, 50/60Hz Auto-Switching 80 Plus Gold Rated Power Supply |
| Dimensions | Height: 17.06" (433mm) Width: 13.67" (347mm) Depth: 9.02" (229mm) |
| Weight | ~30 lbs (13.6kg) |
| Touch Option | Touchscreen Optional |
| WiFi / Bluetooth | WiFi and Bluetooth Optional |
| RAID | RAID 0/1/5/10 |
| Keyboard & Mouse | 105-key Keyboard With Integrated Touchpad. Available in a variety of languages. |
| Transit Case | Includes Padded Rolling Transit Case Optional :Hardened Case Available |
| Quality | ISO 9001 |
| Regulation | CE, FCC, CCC |
| Warranty | 1 Year Parts And Labor |
Configuration Options
The technical specifications are an example of the system's capabilities. They can be customized specifically for your needs. If you have any questions, feel free to contact one of our sales representatives.
Contact Sales| Product |
FlexPAC
|
DuraPAC
|
MegaPAC L1
|
|---|---|---|---|
| Display | 17.3" FHD 1920x1080 - 300 nits Upgradable options: 1000 nits, UHD 3840x2160, 60Hz Display, 2K, 144Hz displays, projected capacitive or resistive touchscreen option |
17.3" FHD 1920x1080 - 300 nits Upgradable options: 1000 nits, UHD 3840x2160, 60Hz Display, 2K, 144Hz displays, projected capacitive or resistive touchscreen option |
23.8" UHD 3840x2160 - 350 nits (Optional: 800 nits - 650 nits with touchscreen), 23.8" Full HD 1920x1080 - 250 nits (Optional: 1000 nits - 800 nits with touchscreen), 24" WUXGA 1920x1200 - 250 nits (Optional: 1000 nits) |
| CPU | Latest Single/Dual Intel® Xeon, Intel® Core, AMD Ryzen™, or AMD EPYC™ | Latest Intel® Xeon, Intel® Core, or AMD Ryzen™ 7 | Latest Single/Dual Intel® Xeon, Intel® Core, AMD Ryzen™, or AMD EPYC™ |
| Memory | Up to 1TB DDR4 RAM | Up to 768GB DDR4 RAM | Up to 1TB DDR4 RAM |
| Graphics Card | Integrated HD graphic controller or application-specific graphic controller |
Integrated HD graphic controller or application-specific graphic controller |
Integrated HD graphic controller or application-specific graphic controller |
| Expansion Slots | Up to 7 | Up to 4 | Up to 7 |
| Storage | Up to 48TB (Removable Option Available) | Up to 36TB (Removable Option Available) | Up to 150TB (Removable Option Available) |
| Power Supply | 680W 100/240VAC, 50/60Hz Auto-Switching 80 Plus Gold Rated Power Supply | 680W 100/240VAC, 50/60Hz Auto-Switching 80 Plus Gold Rated Power Supply | 850W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated Optional: 1000W or 1200W 100/240VAC, 50/60Hz auto-switching 80 PLUS Platinum rated (with 10 year warranty) Optional: 28VDC power supply |
| Dimensions | Height: 17.06" (433mm) Width: 13.67" (347mm) Depth: 9.02" (229mm) |
Height: 13.62" (346mm) Width: 16.50" (410mm) Depth: 7.25" (184mm) |
Height: 15.12" (384mm) Width: 23.11" (587mm) Depth: 9.02" (229mm) |
| Weight | ~30 lbs (13.6kg) | ~23 lbs (10.4kg) | ~40 lbs (18kg) |
